Missing diode on flipper coil?

Discussion in 'Pinball Tech Support' started by Coitusmysterioso, Jan 8, 2019.

  1. Coitusmysterioso

    Coitusmysterioso Active Member

    Joined:
    Jan 13, 2017
    Messages:
    199
    Likes Received:
    26
    Location:
    Shelburne, Ontario

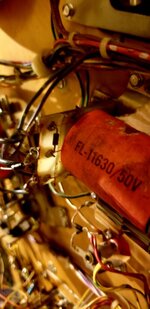

    Found this when I checked out the flipper mech on my Pinbot. Looks like someone removed one of the diodes on the right flipper coil. Left has same coil and 2 diodes. Makes no sense to me.

    It's not that big of a deal as I plan on replacing everything anyway but just wanted to know of there was a reason?


    Attached Files:

    #1
  2. atariaction

    atariaction Well-Known Member

    Joined:
    Dec 1, 2012
    Messages:
    1,543
    Likes Received:
    102
    Location:
    London, ON
    The manual shows a different coil. There is information in the manual also referring to one diode and a photo on Google reveals a coil with only one diode. Hope that helps!


    Attached Files:

    #2
  3. Coitusmysterioso

    Coitusmysterioso Active Member

    Joined:
    Jan 13, 2017
    Messages:
    199
    Likes Received:
    26
    Location:
    Shelburne, Ontario
    Thanks Mike.

    Its a different coil because its been upgraded to a parallel coil at some point and as such should have 2 diodes just like the left flipper. Just wondering if there was a known reason for doing this as it doesn't make sense to me in the sense of an electrical circuit.

    #3
    atariaction likes this.
  4. atariaction

    atariaction Well-Known Member

    Joined:
    Dec 1, 2012
    Messages:
    1,543
    Likes Received:
    102
    Location:
    London, ON
    No problem. Ahh ok I see. I don't know much about the parallel coil system. Why do they convert to that?

    #4
  5. Dave Astill

    Dave Astill Active Member

    Joined:
    Nov 27, 2012
    Messages:
    523
    Likes Received:
    104
    Location:
    Collingwood Ontario
    no need to change coils if the sleeves can be removed, the actual coils dont wear.
